Description
Speaker Features
Speaker Features

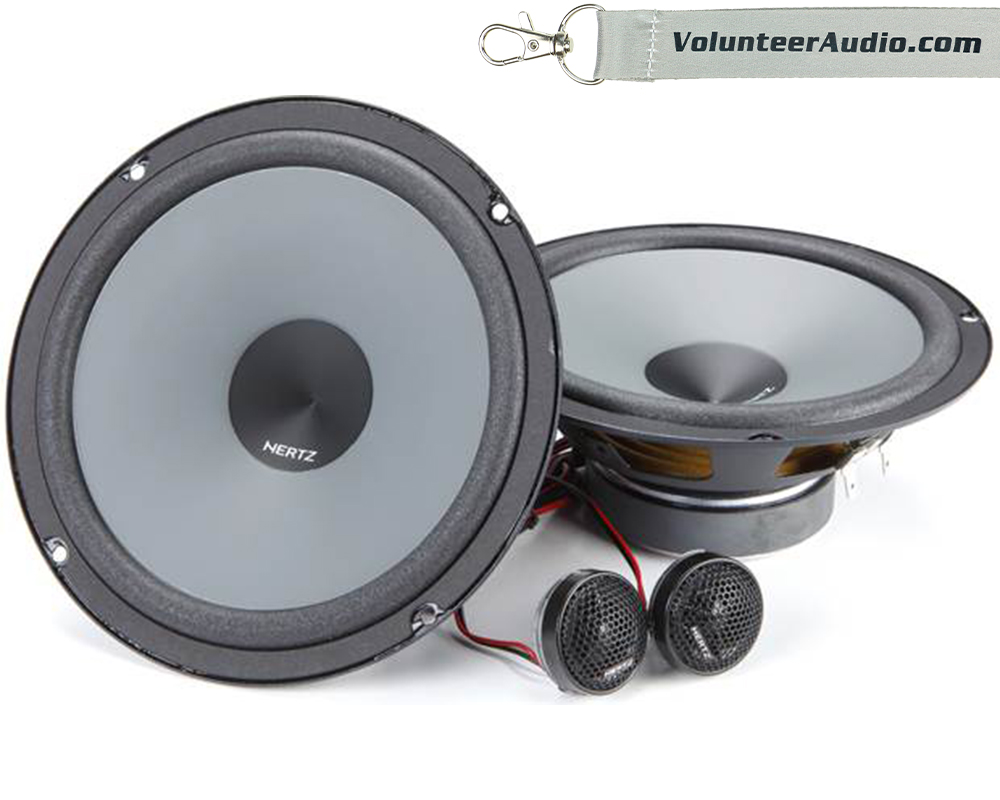

K 165
Uno systems

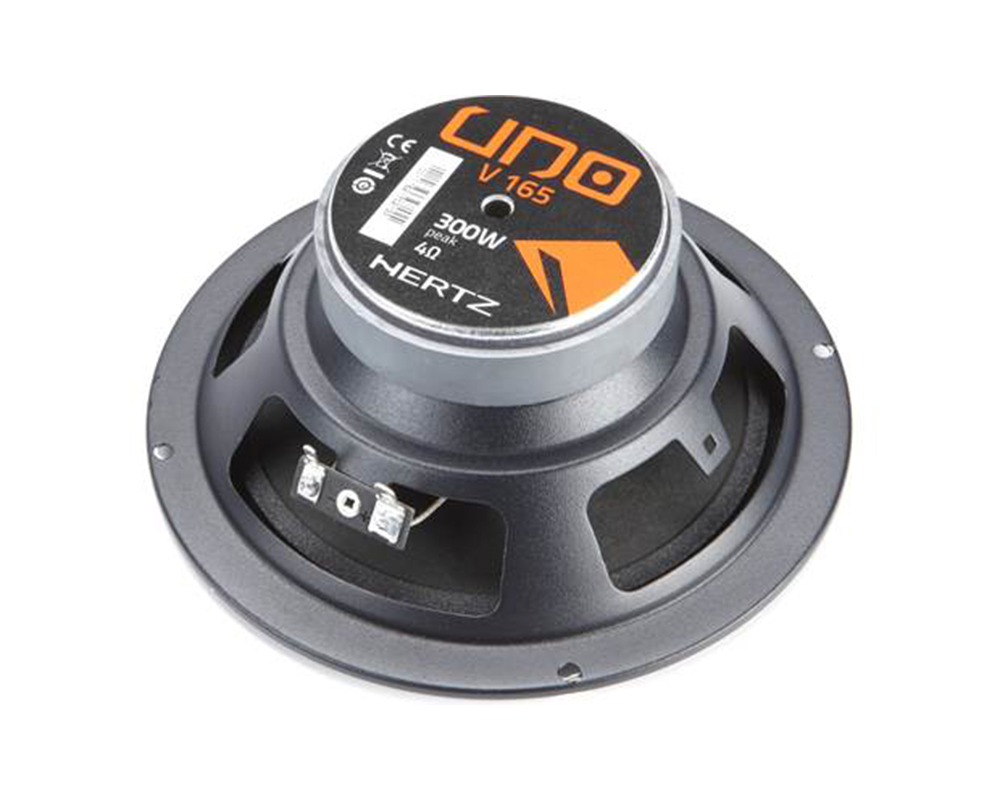

The K 165 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
Hertz K165 Component Set |
|||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 300W | ||||
| Continuous Power (RMS) | 75W | ||||
| Sensitivity | 93,5 dB | ||||
| Effective Frequency Range | 55-23k Hz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 5 1/2 (139.70 mm) | ||||
| Top Mount Depth | 2.25 | ||||
| Bottom Mount Depth | 2.5 | ||||
| Grille | No | ||||
| Warranty | 2 Year | ||||
