Description
Speaker Features

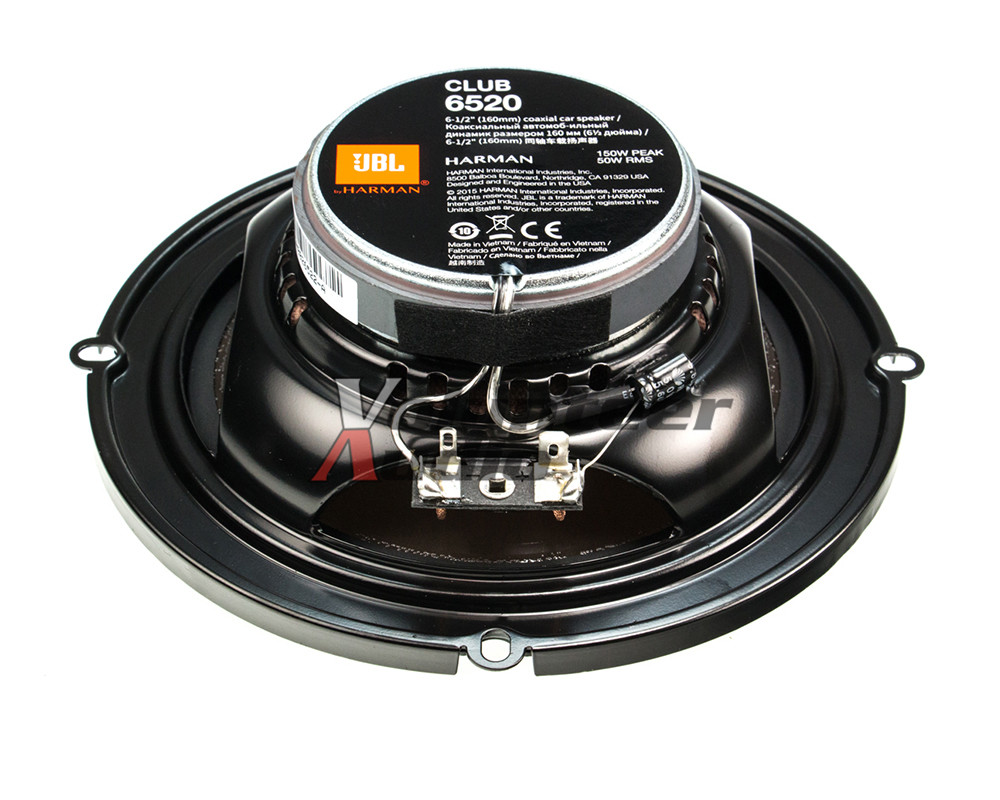

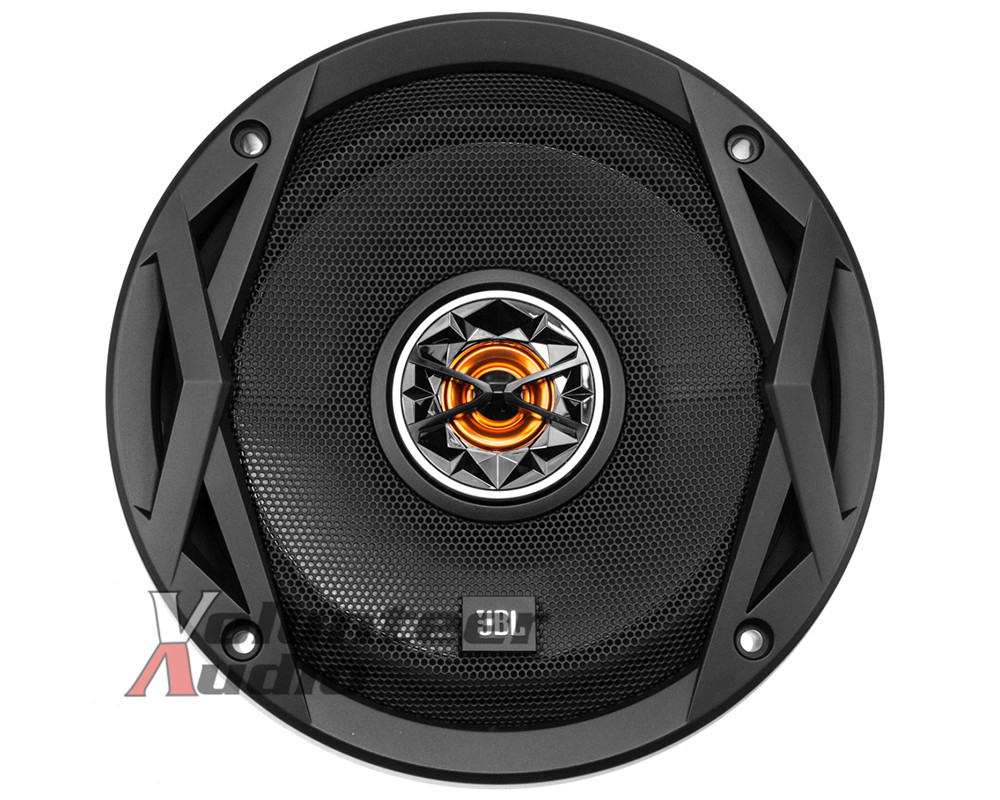

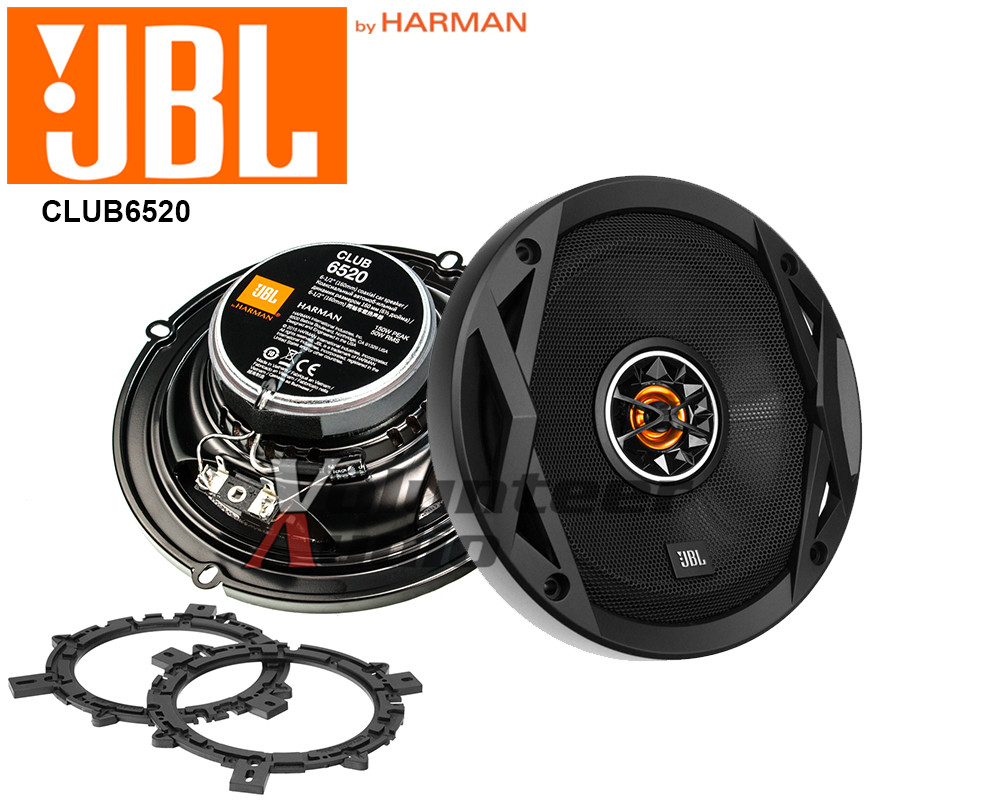

JBL – CLUB 6520

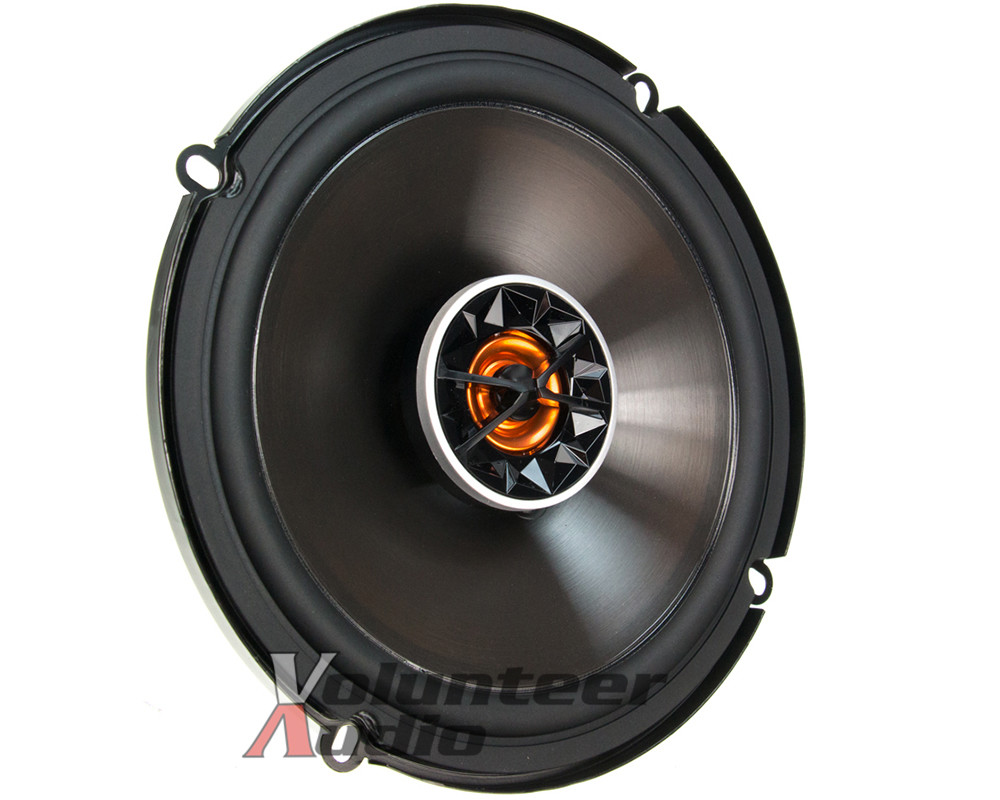

Acoustically damped, UV-resistant polypropylene cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.
PEI balanced dome tweeters
Club speakers play smooth, clear high frequencies with excellent dispersion, thanks to the PEI balanced dome tweeters.
High-sensitivity design
Club speakers’ efficiency produce plenty of sound from the power they’re fed, making them ideal for any application, even when they’re driven by relatively low-powered factory stereos.
Reduced critical dimensions
Club speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
JBL CLUB 6520 Full-Range Speaker |
|||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| Woofer | Woofer Size | 6-1/2 (6.5) | |||
| Woofer Cone Material | Carbon Polypropylene | ||||
| Woofer Surround Material | Polypropylene | ||||
| Tweeter | Tweeter Size | 1/2 | |||
| Tweeter Dome Material | PEI | ||||
| Tweeter Design | Dome | ||||
| DC Resistance (Ω) | 3 Ohm (Ω) | ||||
| Peak Power (Watts) | 150W | ||||
| Continuous Power (RMS) | 40W | ||||
| Sensitivity | 92dB @ 2.83V | ||||
| Effective Frequency Range | 55Hz – 20kHz | ||||

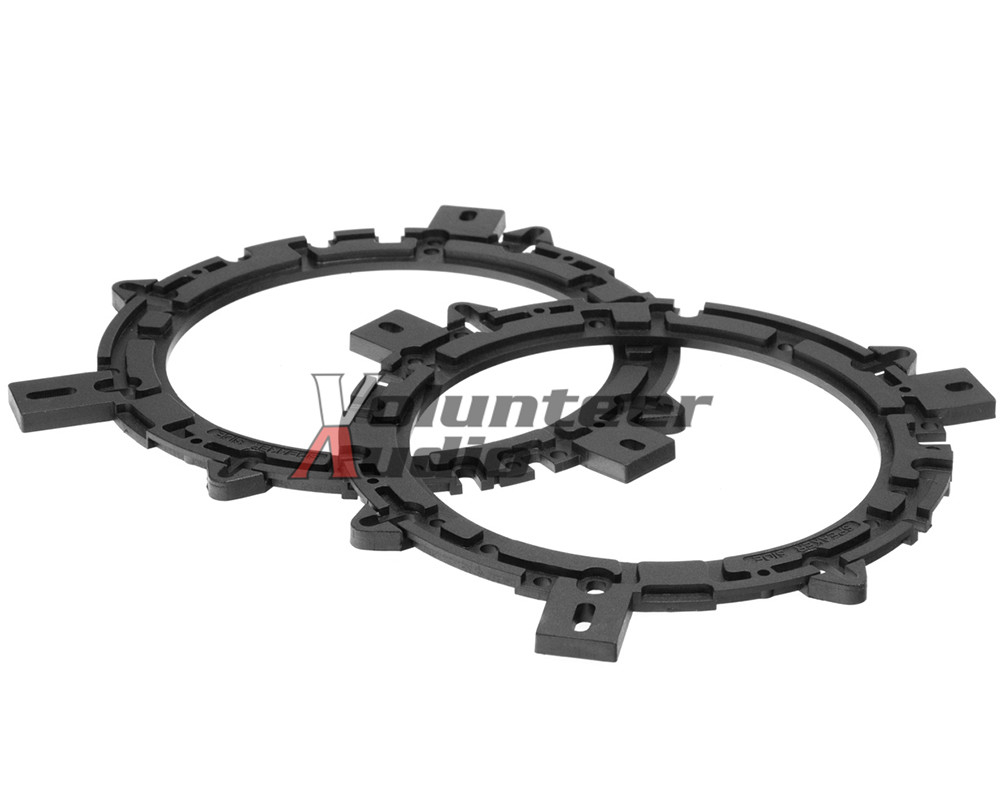

| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 4-7/8 (123.83 mm) | ||||
| Top Mount Depth | 2-1/4 | ||||
| Bottom Mount Depth | 1-13/16 | ||||
| Tweeter Protrusion | N/A | ||||
| Grille | No | ||||
| Warranty | 1 Year | ||||
