Description
Speaker Features
Speaker Features
Features :
- Heavy duty die cast frames
- Aluminum wave guides
- Excellent high frequency dispersion creating exceptional sound stage and imaging
- Able to reproduce tremendous sonic clarity well beyond a typical component system
Specifications :
- Power Handling : 450W Max
- Power Handling : 150W RMS
- Impedance : 8Ω
- Sensitivity : 94,6dB/2,83V/1m
- Frequency Response : 3,5k – 22kHz
- Mounting Depth : 2.10″ (53mm)
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|

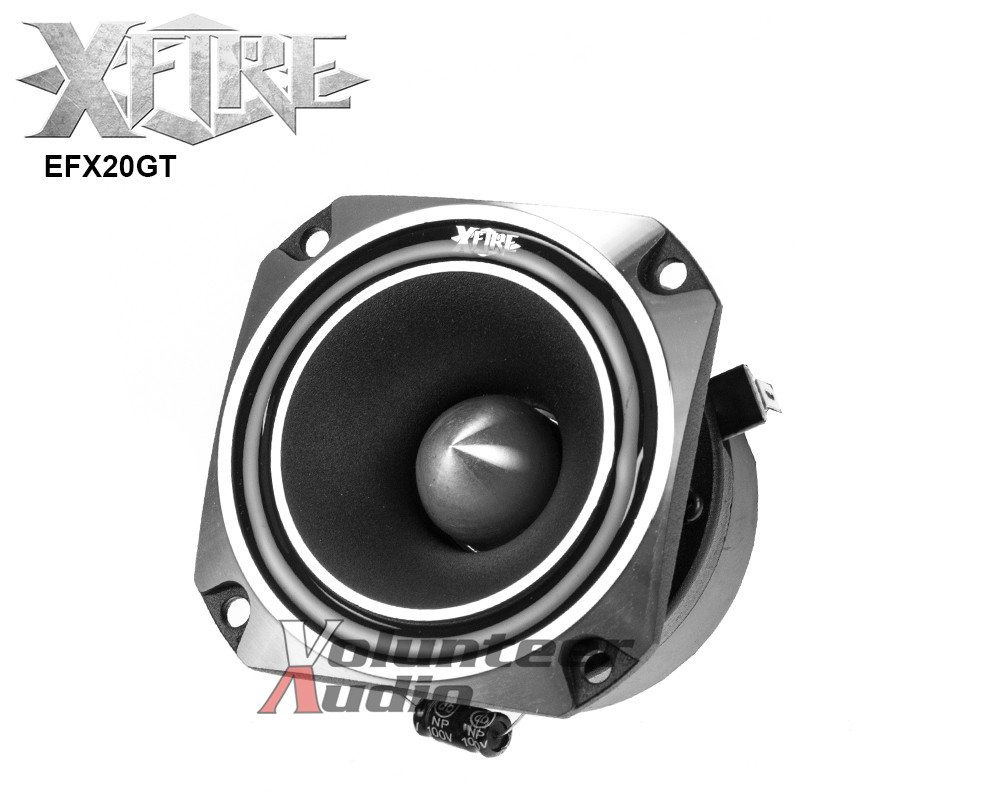

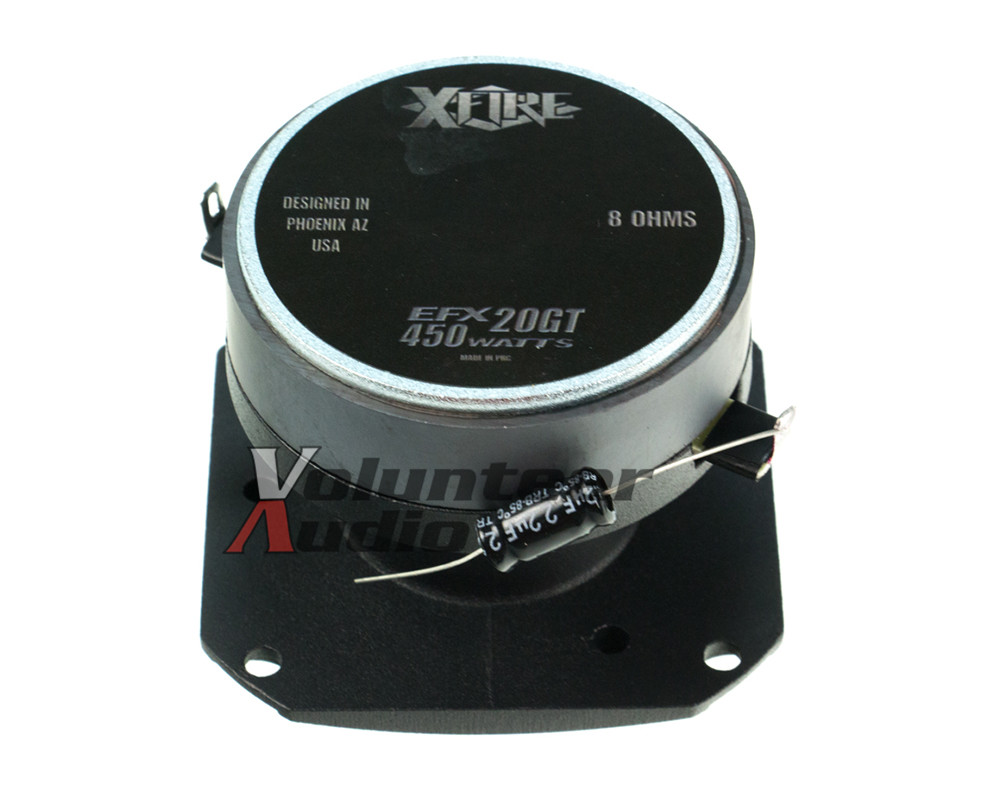

X-Fire EFX20GT Tweeter |
|||||
| GENERAL | |||||
| Speaker Design | Tweeter | ||||
| Woofer | Woofer Size | 2 | |||
| Woofer Cone Material | N/A | ||||
| Woofer Surround Material | N/A | ||||
| Tweeter | Tweeter Size | 2 | |||
| Tweeter Dome Material | Titanium | ||||
| Tweeter Design | Bullet | ||||
| DC Resistance (Ω) | 8 Ohm (Ω) | ||||
| Peak Power (Watts) | 450W | ||||
| Continuous Power (RMS) | 150W | ||||
| Sensitivity | 94.6dB | ||||
| Effective Frequency Range | 3.5kHz – 22kHz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 2-13/16 (71.44 mm) | ||||
| Top Mount Depth | |||||
| Bottom Mount Depth | 2-3/64 | ||||
| Grille | No | ||||
| Warranty | 1 Year | ||||
