Description
Speaker Features
Speaker Features
DCX 570.3
Two way coaxial

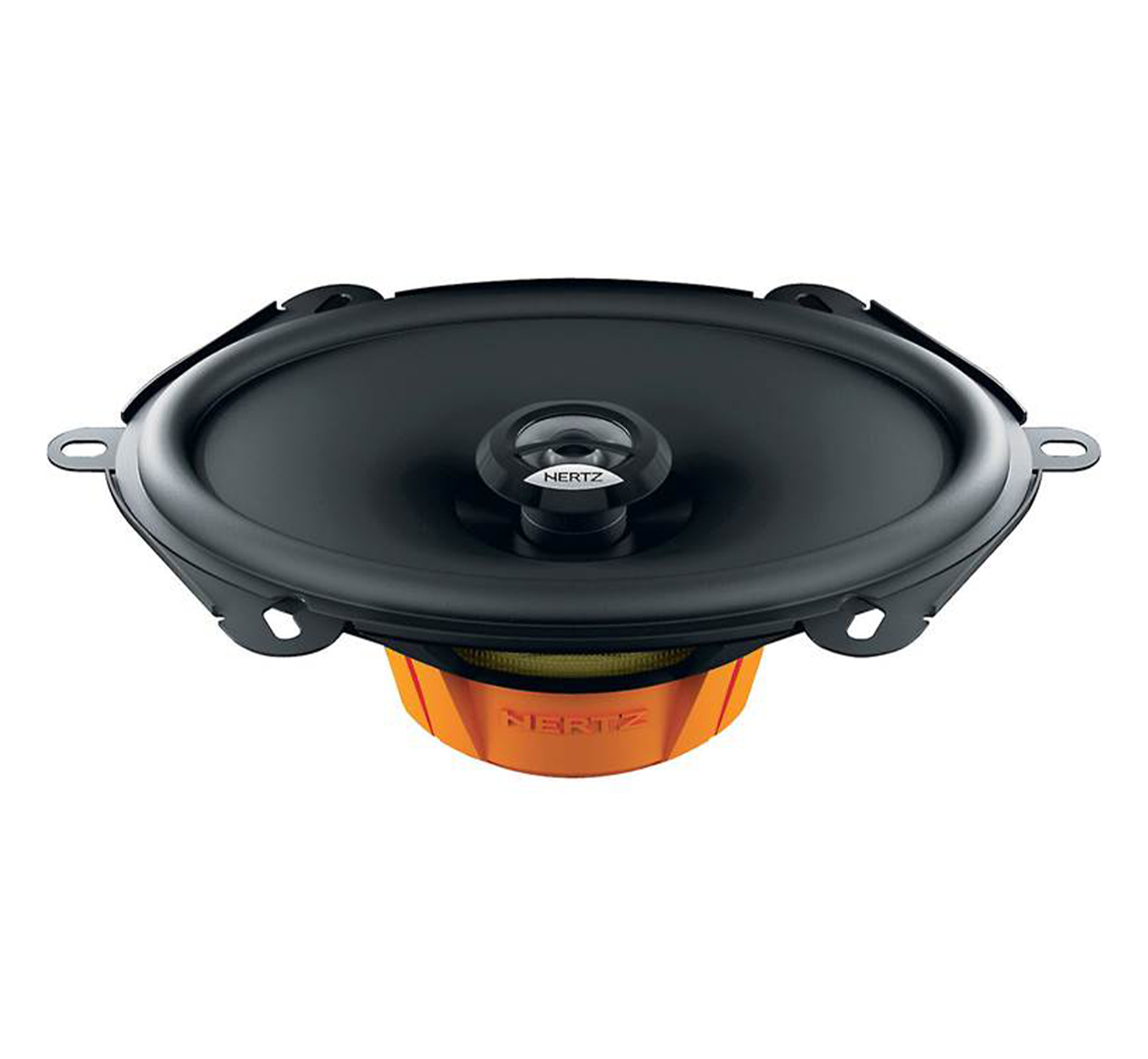

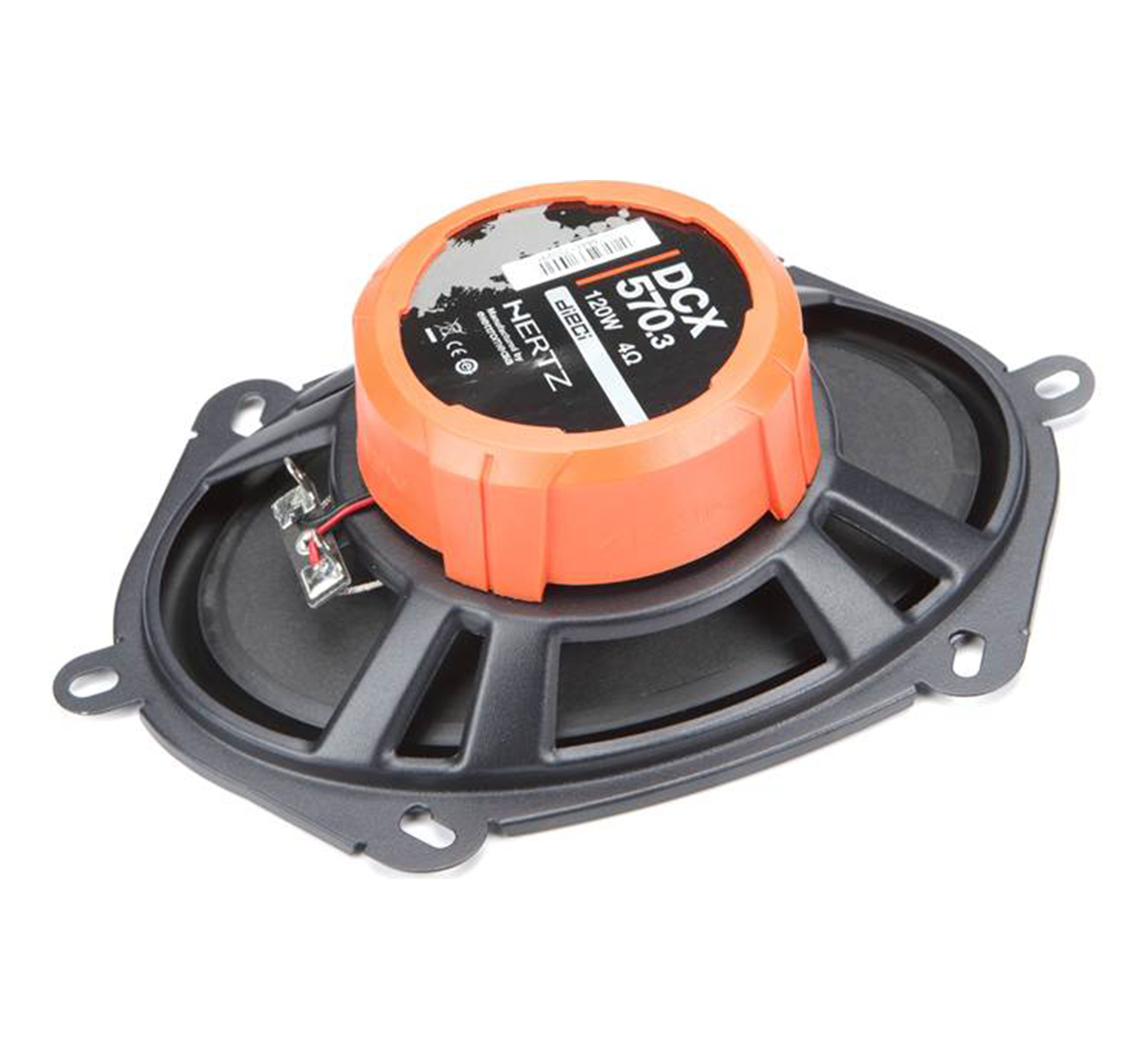

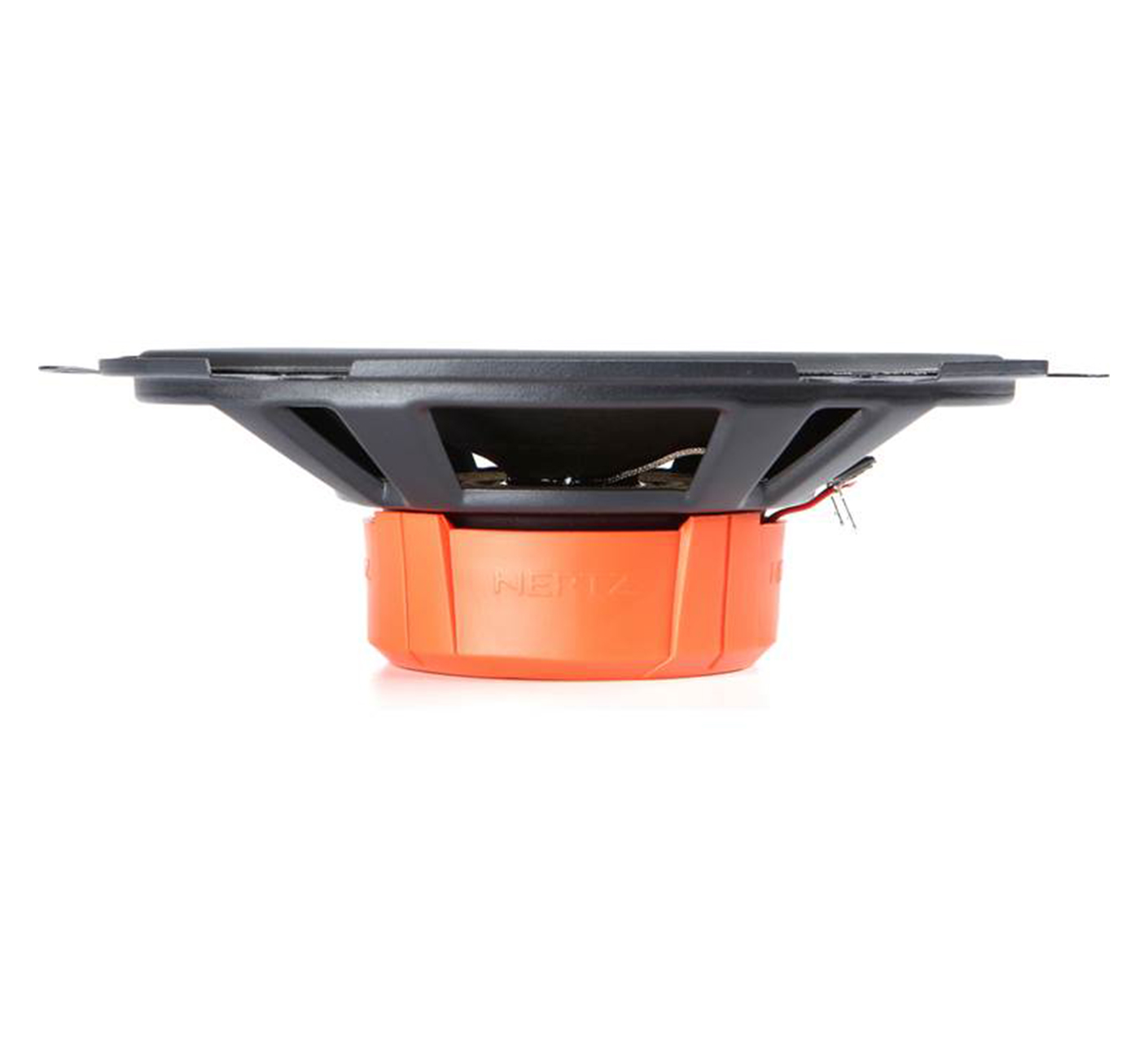

This 2-way coax speaker is designed to satisfy specific installation and listening needs. DCX 570.3 features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
Hertz DCX570.3 Full-Range Coaxial Speaker |
|||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 120W | ||||
| Continuous Power (RMS) | 60W | ||||
| Sensitivity | 93dB | ||||
| Effective Frequency Range | 60 – 21kHz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 5 X 7-1/5 (127.00 mm X 182.88 mm) | ||||
| Top Mount Depth | 2-3/10″ | ||||
| Bottom Mount Depth | 3/10″ | ||||
| Grille | No | ||||
| Warranty | 2 Year | ||||
