Description
Speaker Features
Speaker Features
Product Details:

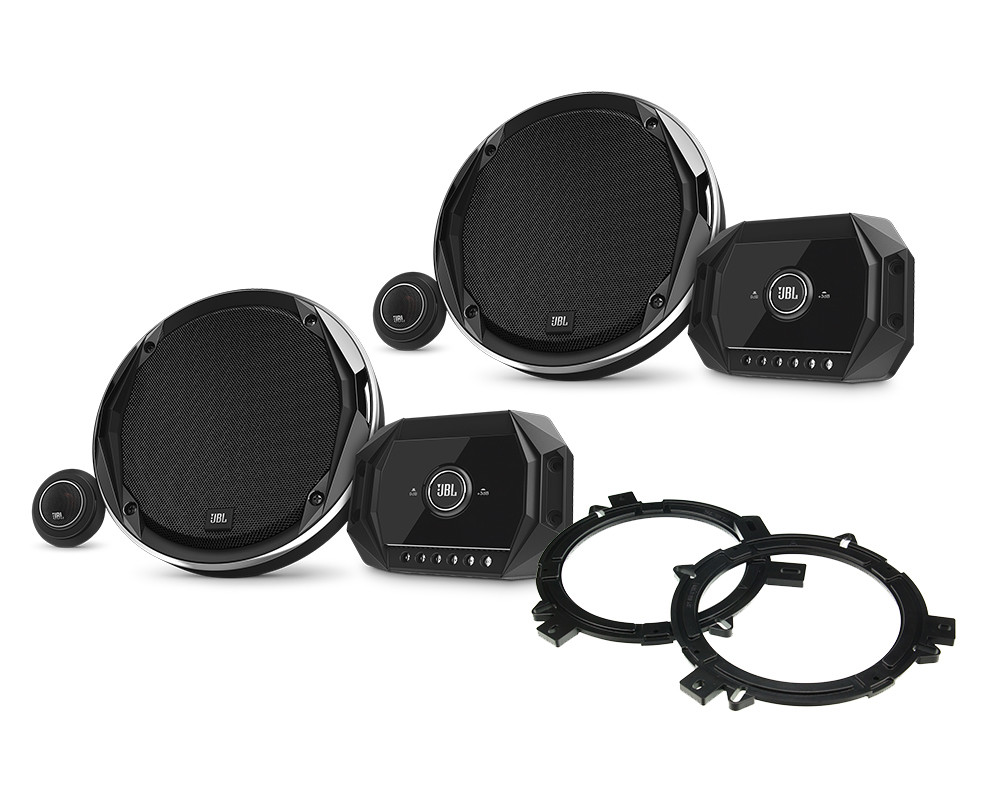

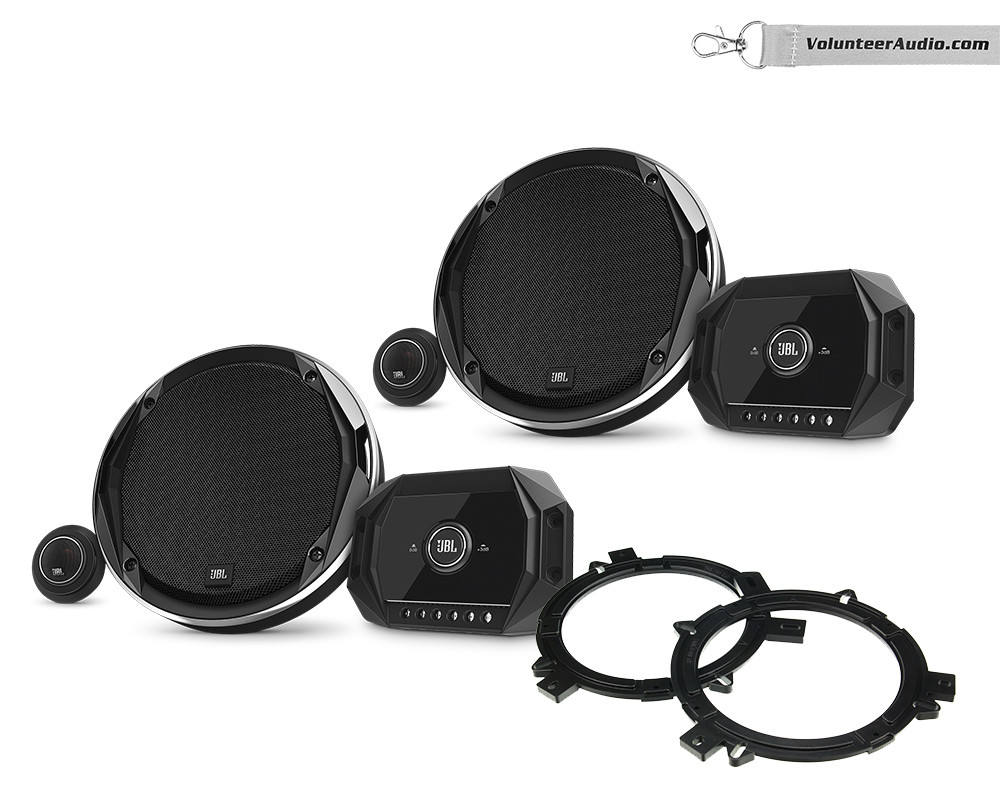

- 6.5″ Stadium GTO Series 2-Way Component System
- Power Handling:
- Peak: 600W per set / 300W each side
- RMS: 200W per set / 100W each side

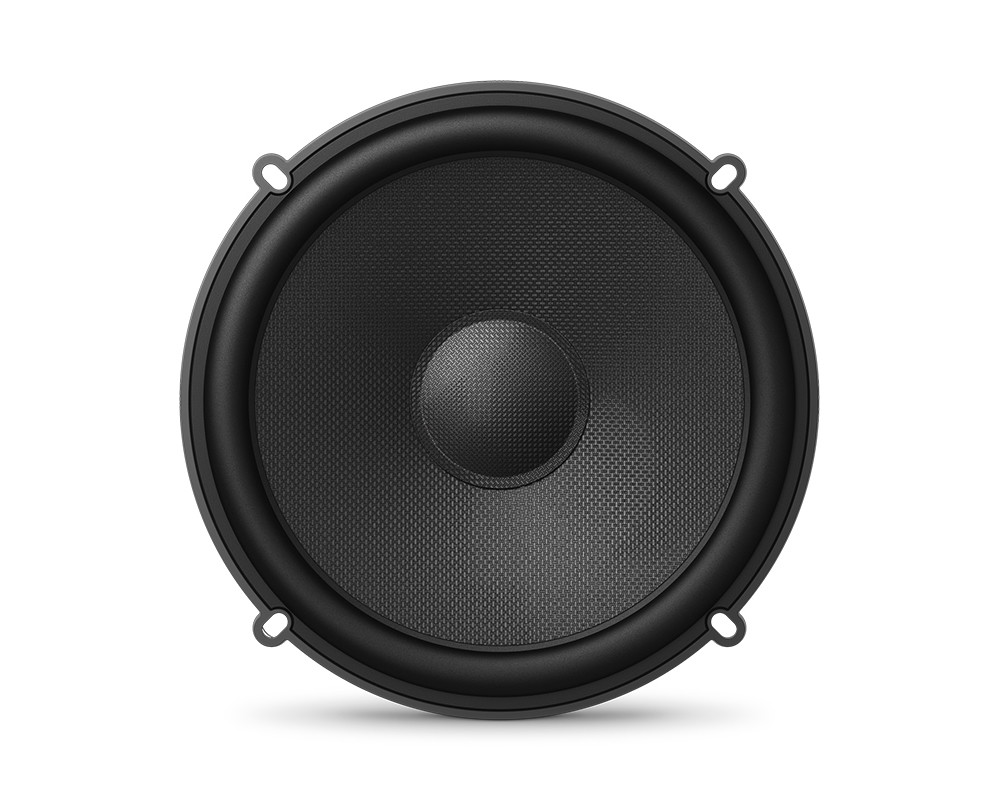

- Glass fiber Plus One woofer cone
- Rubber surround
- Low impedance design gets more out of your stereo or amplifier

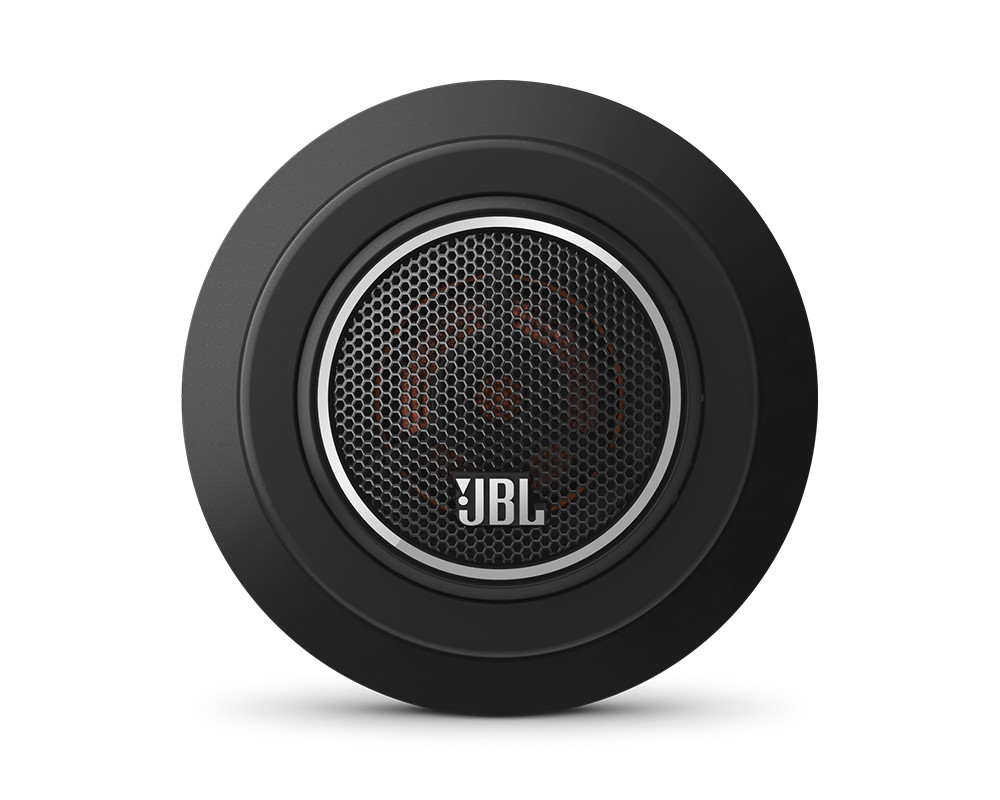

- 1.4″ Edge-driven soft-dome tweeters

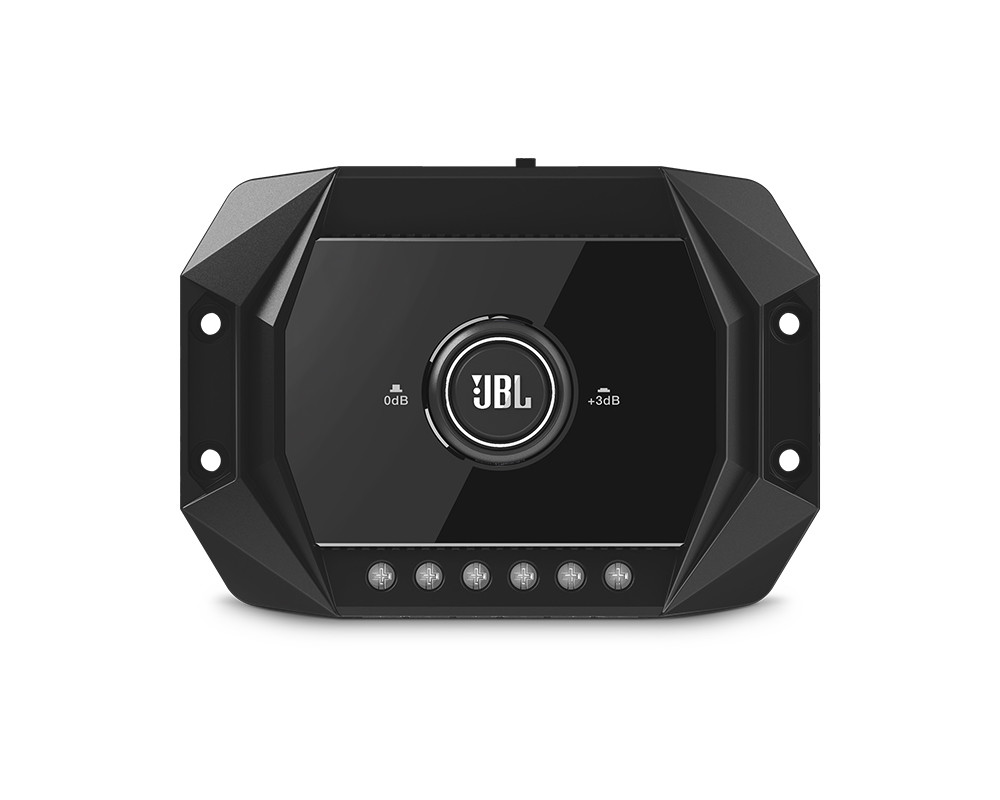

- Gap switchable crossovers
- 3-Way upgradeable with the JBL Stadium GTO 20M
- 1.3″ Oversized voice coil
- Top-mount Depth: 2.04″
- Cutout Dimensions: 5.07″
- 2.5 ohms impedance
- Frequency Response: 45 – 25000 Hz
- Sensitivity: 93dB
- 1-year Manufacturer’s Warranty
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
JBL STADIUMGTO600C Component Set |
|||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| DC Resistance (Ω) | 2.5 Ohm (Ω) | ||||
| Peak Power (Watts) | 300W | ||||
| Continuous Power (RMS) | 100W | ||||
| Sensitivity | 93dB | ||||
| Effective Frequency Range | 45Hz – 25kHz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 5 – 2/5 (137.07 mm) | ||||
| Top Mount Depth | 2.0245 | ||||
| Bottom Mount Depth | 2.4335″ | ||||
| Grille | Yes | ||||
| Warranty | 1 Year | ||||
