Description

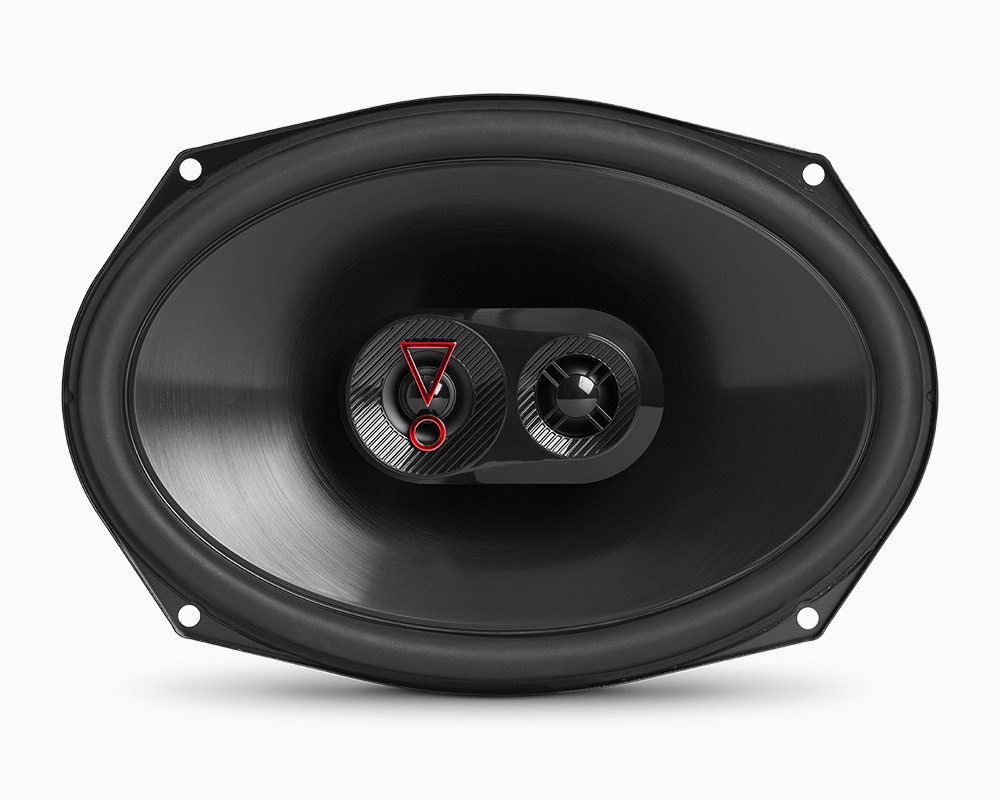

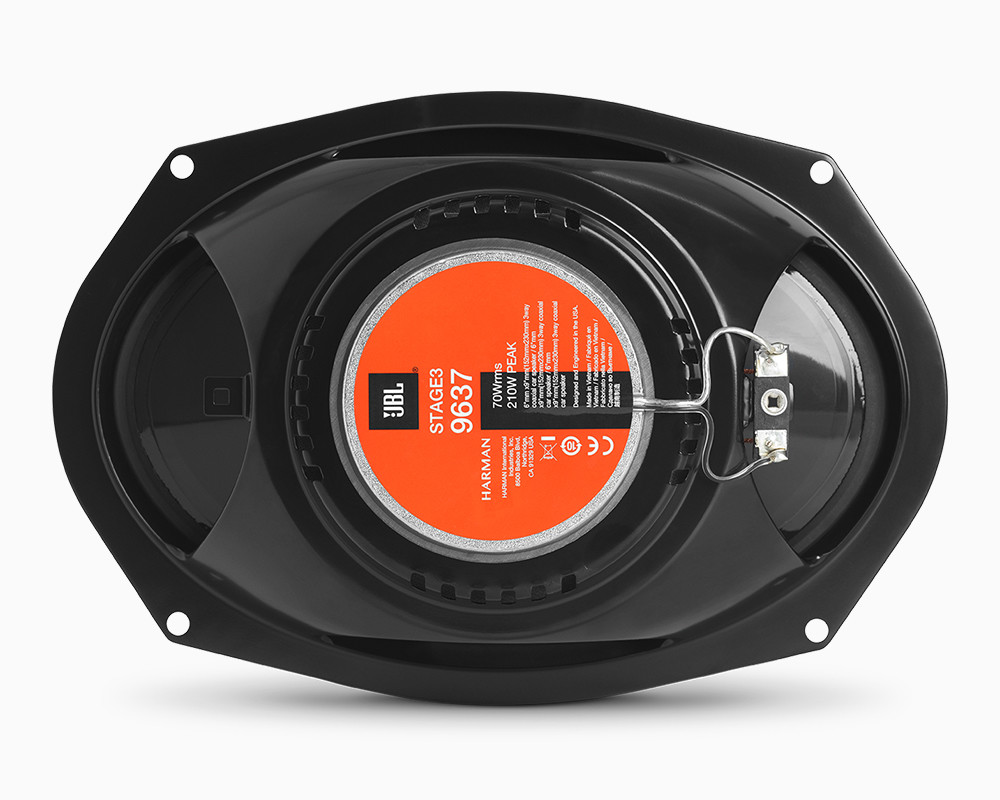

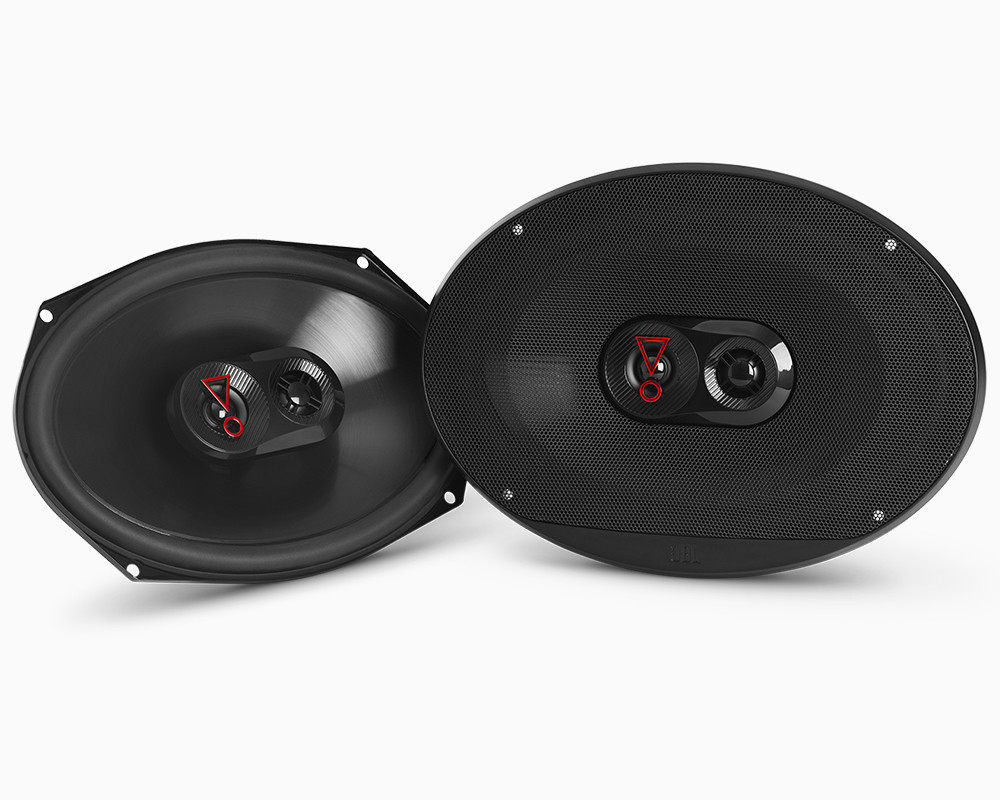

6X9 Inch Full-Range Coaxial Speaker
- Polypropylene cone with a Surround
- ” Dome Tweeter
- Maximum Power – 375W, RMS Wattage – 75W, Impedance – 3 Ohm
- More Features!
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
JBL STAGE3 9637 Full-Range Coaxial Speaker |
|||||
| GENERAL | |||||
| Speaker Design | 3-Way | ||||
| DC Resistance (Ω) | 3 Ohm (Ω) | ||||
| Peak Power (Watts) | 375W | ||||
| Continuous Power (RMS) | 75W | ||||
| Sensitivity | 93 dB | ||||
| Effective Frequency Range | 50Hz-20kHz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 5-3/4″ X 8-1/2″ (146.05 mm X 215.90 mm) | ||||
| Top Mount Depth | 3-1/8″ | ||||
| Bottom Mount Depth | 3-1/4″ | ||||
| Grille | Yes | ||||
| Warranty | |||||
