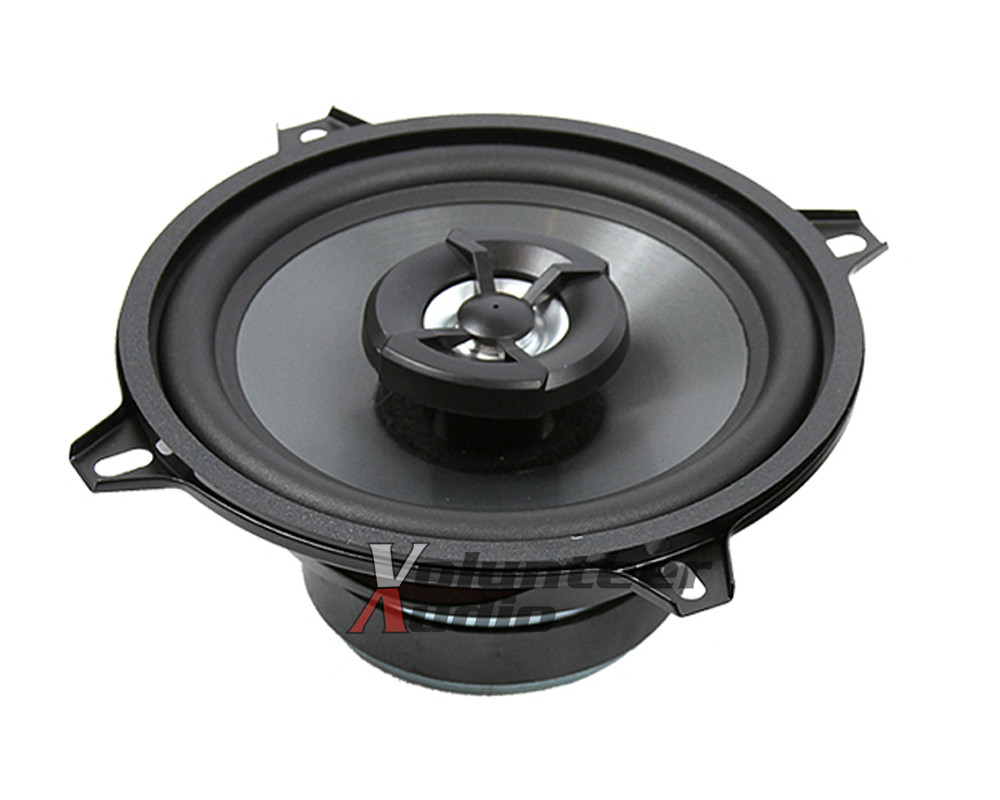

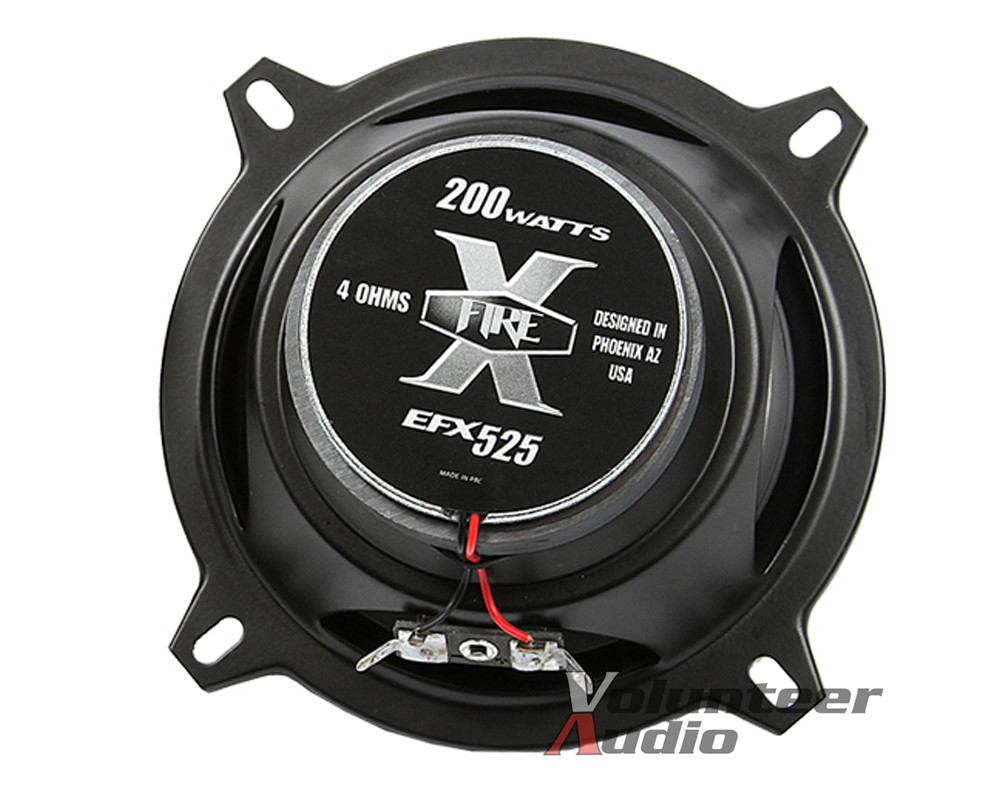

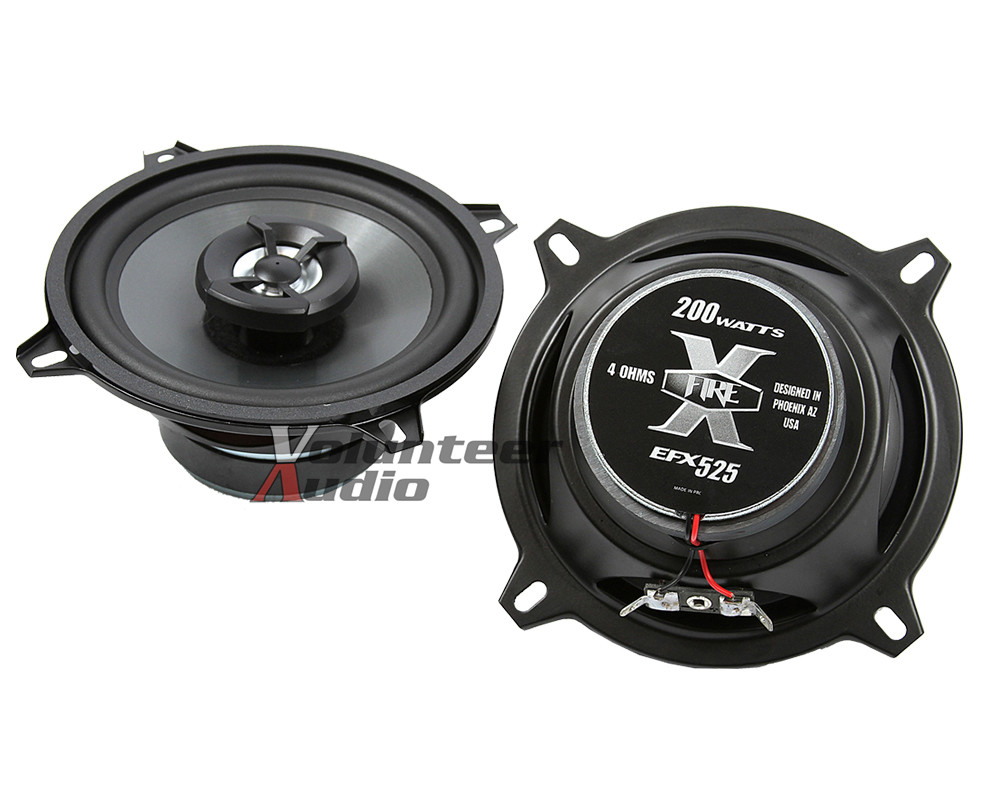

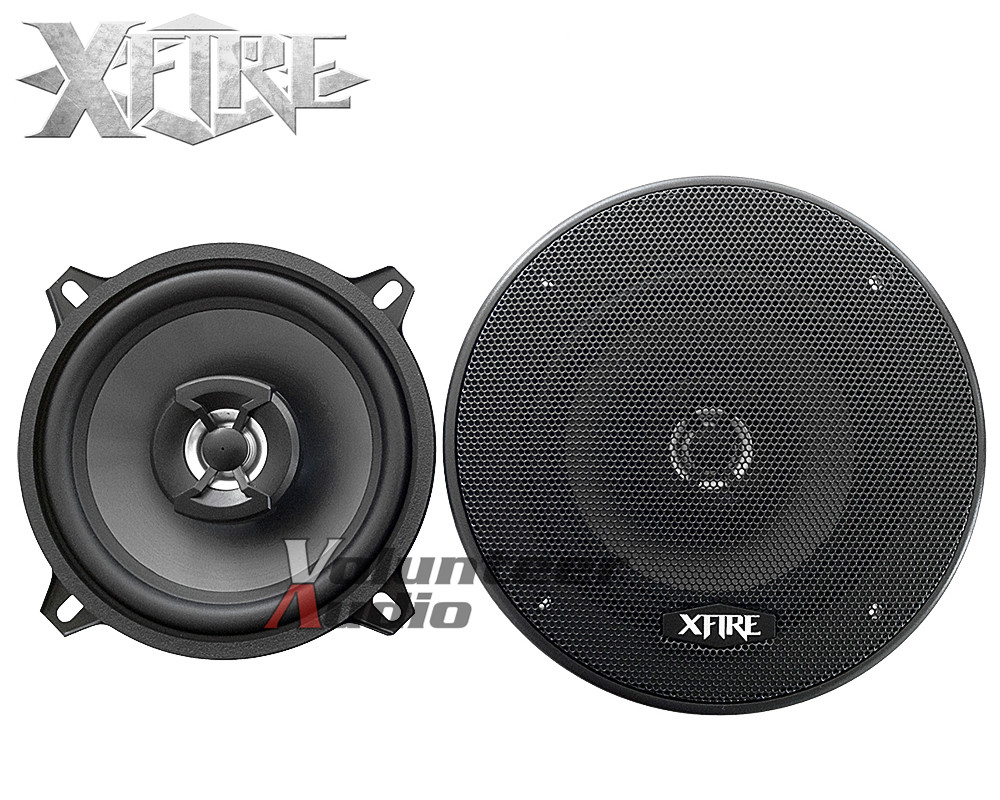

XFIRE – EFX525
EFX525 2-way 5.25″ 4Ω Coaxial system
Features :
- Strontium motor structures
- Stamped steel chassis
- Poly injected cones
- 25mm voice coils
- Rubber surrounds
- Robust suspensions
Specifications :
- Power Handling : 200W Max
- Power Handling : 50W RMS
- Impedance : 4Ω
- Sensitivity : 91,7dB/2,83V/1m
- Frequency Response : 51 – 25000Hz
- Mounting Depth : 2.01″ (51mm)
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
X-Fire EFX525 Full-Range Speaker |
|||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| Woofer | Woofer Size | 5-1/4 (5.25) | |||
| Woofer Cone Material | IMPP | ||||
| Woofer Surround Material | Rubber | ||||
| Tweeter | Tweeter Size | 1/2 | |||
| Tweeter Dome Material | Silk | ||||
| Tweeter Design | Dome | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 200W | ||||
| Continuous Power (RMS) | 50W | ||||
| Sensitivity | 91.7 dB | ||||
| Effective Frequency Range | 51-25k Hz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | (0.00 mm) | ||||
| Top Mount Depth | 2 | ||||
| Bottom Mount Depth | N/A | ||||
| Tweeter Protrusion | N/A | ||||
| Grille | Yes | ||||
| Warranty | 1 Year | ||||
